The Poultry Watering Systems Guide: Choosing The Perfect Drinking Nipples

Understanding the Basics of Poultry Drinking Technology

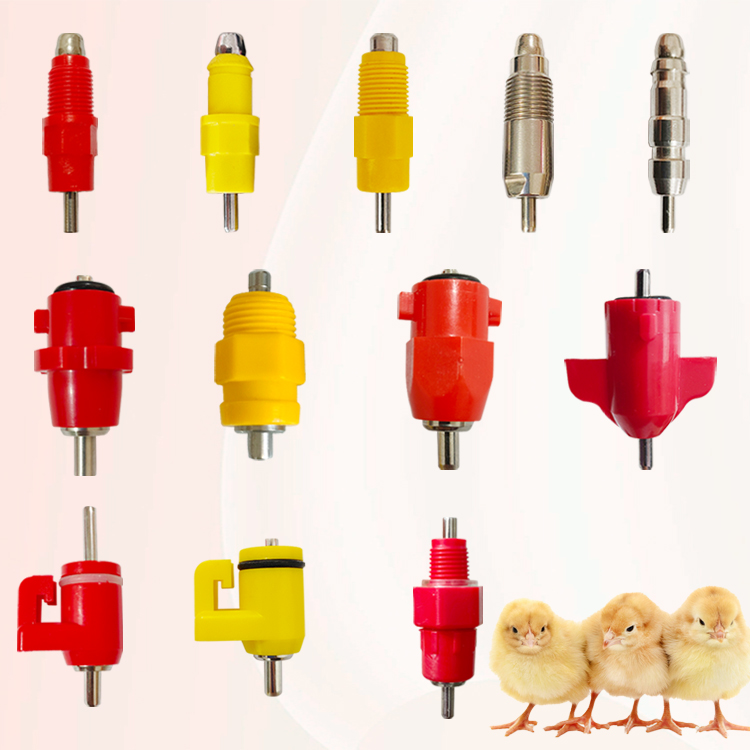

Modern poultry operations utilize two primary types of watering nipples, each designed to meet specific flock needs:

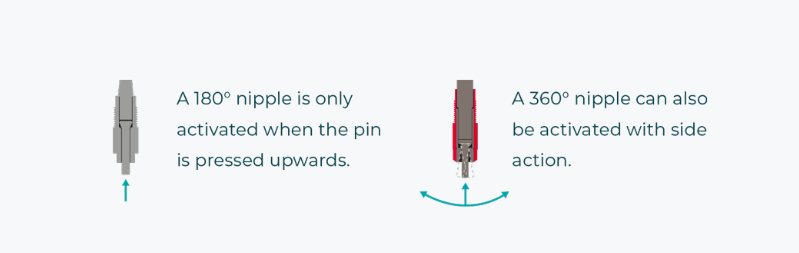

1. Vertical Activation Nipples (180° System)

   - Operate through upward beak pressure

   - Designed for mature birds with established drinking behavior

   - Minimizes water spillage in adult flocks

2. Omnidirectional Nipples (360° System)

   - Respond to pressure from any angle

   - Ideal for young or inexperienced birds

   - Accommodates various beak lengths and shapes

Tailoring Watering Solutions to Flock Requirements

Meat Bird Production

- Rapid growth demands optimal hydration

- Young broilers require easy-to-use systems

- Recommended Setup: 360° nipples with:

  - Light trigger pressure (30-40g)

  - Moderate flow rate (55-65 mL/min)

  - Supplemental catch cups in brooding areas

Growing Pullet Management

- Developing birds need encouragement to drink

- Natural curiosity aids in system adaptation

- Ideal Choice: Bright-colored 360° nipples featuring:

  - Distinctive visual markers

  - Gentle activation pressure

  - Audible water release cues

Egg Production Facilities

- Consistency between rearing and laying systems reduces stress

- Water access affects egg production and quality

- Optimal Configuration: Transition from 360° to:

  - 180° production nipples

  - 65-75 mL/min flow capacity

  - Environment-appropriate water collection

Natural-Beak Layer Systems

- Untrimmed beaks require specialized designs

- Traditional systems increase waste and reduce intake

- Specialized Solution: Side-activated 360° nipples with:

  - Reduced flow (45-55 mL/min)

  - Extended trigger pins

  - Integrated water deflection

Breeding Stock Hydration

- Controlled water intake maintains reproductive health

- Excessive drinking impacts litter and air quality

- Preferred System: Heavy-duty 180° nipples with:

  - Precision flow regulation (35-45 mL/min)

  - Delayed shutoff function

  - Corrosion-resistant materials

Technical Selection Parameters

Material Specifications

- Premium Selection: Medical-grade stainless steel

  - 60,000+ activation durability

  - Resists mineral buildup and corrosion

- Value Option: Reinforced polymer composites

  - 12,000-18,000 activation lifespan

  - Weather-resistant formulations

Flow Rate Optimization

- Standard operating parameters:

  - Growing birds: 45-65 mL/min

  - Laying hens: 65-80 mL/min

  - Meat birds: 55-70 mL/min

- Environmental adjustments:

  - 20% flow increase during thermal stress

  - Supplemental cooling integration

Water Conservation Features

- Essential collection systems:

  - Brooding cups (55mm capacity)

  - Production troughs (80mm capacity)

  - Anti-roosting designs

- System efficiency metrics:

  - Conventional: 87-91% effectiveness

  - Advanced: 94-96% effectiveness

Innovative System Enhancements

- Intelligent watering solutions:

  - Individual consumption monitoring

  - Climate-responsive flow adjustment

  - Predictive maintenance alerts

- Sanitation advancements:

  - Microbe-resistant surfaces

  - Sterilization-compatible designs

  - Easy-clean connection points

Global Implementation Standards

European Compliance Requirements

- Animal welfare mandates:

  - Natural beak accommodation

  - Minimum access provisions

  - Performance verification

North American Operational Standards

- Large-scale system priorities:

  - Long-term reliability

  - Cold weather performance

  - Disease prevention integration

Asian Regional Adaptations

- Tropical climate considerations:

  - Increased flow capacity

  - Fungus-resistant materials

  - Seasonal weather protection

System Implementation Process

1. Flock Evaluation

   - Age distribution analysis

   - Beak condition assessment

   - Production targets review

2. Environmental Analysis

   - Housing configuration

   - Climate patterns

   - Water quality parameters

3. Technical Specification

   - Nipple type selection

   - Flow rate determination

   - Distribution density planning

4. Installation Protocol

   - Height adjustment standards

   - Pressure system calibration

   - Initial flushing procedures

Maintenance Best Practices

- Daily operational checks:

  - Functionality testing

  - Flow rate verification

  - Leakage inspection

- Weekly maintenance:

  - Thorough cleaning

  - Component wear evaluation

  - Pressure system assessment

- Annual system review:

  - Complete flushing

  - Part replacement

  - Performance evaluation

Performance Measurement

- Critical metrics:

  - Water utilization efficiency

  - Flock consistency

  - System reliability

- Continuous enhancement:

  - Data collection systems

  - Industry benchmarking

  - Technology integration

Conclusion

Selecting appropriate watering technology requires careful consideration of flock characteristics, production goals, and operational environment. Modern poultry operations must balance animal welfare with production efficiency through scientifically designed watering solutions. Implementing the right nipple technology, combined with proper maintenance, ensures optimal water usage, bird health, and operational success throughout the production cycle.

Progressive operations should consider gradual technology adoption, starting with core reliability features and advancing toward smart systems as operational scale and capability allow. Regular performance evaluation against industry standards maintains competitiveness in evolving market conditions.
